NKT Pre-Moulded Cold Applied Slipover Cable Terminations
For XLPE- and EPR-insulated cables 1- or 3-core with AI or Cu conductors for 11-33 kV.
NKT manufactures a wide range of cables and cable accessories and is the leading supplier of medium voltage screened connectors across much of Australasia.
NKT was the first to manufacture silicone rubber cable terminations and now has 50 years’ experience, in applications up to 400 kV.
NKT pre-moulded cold applied slipover cable terminations are made of silicone rubber with integrated field control and top sealing.
The silicone rubber grade used in SOT terminations is durable, UV and ozone resistant, waterproof, non- flammable, self-extinguishing and heat resistant, and environmentally friendly.
Together with its excellent mechanical and electrical properties, this makes it the preferred material for 11- 33kV terminations.
In addition to offering high quality electrical insulation and superior corona and tracking resistance, the elasticity of silicone rubber facilitates a wide application range. So, one product can be used for many different conductor cross-sections.
The single-piece design makes the termination quick and easy to install, saving you valuable time and money.
The outdoor types are provided with permanent sheds for extended creepage distance.
The terminations are supplied in indoor or outdoor kits for 1- or 3-core cables, with or without shear-bolt lugs.
Meets the requirements of:
- CENELEC, HD 629.1 S1
- IEEE 48 1996
Always select products by insulation diameter.
3x single phase kits without lugs
11/22 kV indoor terminations: 3x single phase kits without shear-bolt lugs, includes silicone tape
Hiko Code | Application range |
Insulation Diameter (mm) | |||||
11kV | 22kV | ||||||
Cross section (mm2) | Cross section (mm2) |
Min |
Max | ||||
Min | Max | Min | Max | ||||
NKTSOT241A3 | 10 | 35 | 10 | 16 | 11.0 | 15.0 | |
NKTSOT2413 | 50 | 185 | 35 | 120 | 15.0 | 28.0 | |
NKTSOT2423 | 240 | 500 | 150 | 400 | 25.0 | 39.0 | |
NKTSOT242B3 | 630 | 1000 | 500 | 800 | 38.0 | 54.0 | |
11/22 kV outdoor terminations: 3x single phase kits without shear-bolt lugs, includes silicone tape
|
Hiko Code | Application range |
Insulation Diameter (mm) | ||||
11kV | 22kV | ||||||
Cross section (mm2) | Cross section (mm2) |
Min |
Max | ||||
Min | Max | Min | Max | ||||
NKTSOT243A3 | 16 | 35 | 25 | 11.0 | 15.0 | ||
NKTSOT2433 | 50 | 120 | 35 | 70 | 15.0 | 24.0 | |
NKTSOT2443 | 150 | 300 | 95 | 240 | 22.0 | 33.0 | |
NKTSOT2453 | 400 | 500 | 300 | 500 | 31.0 | 40.0 | |
NKTSOT2463 | 630 | 1000 | 630 | 800 | 38.0 | 54.0 | |

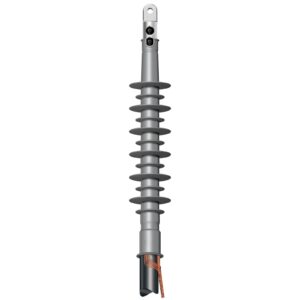

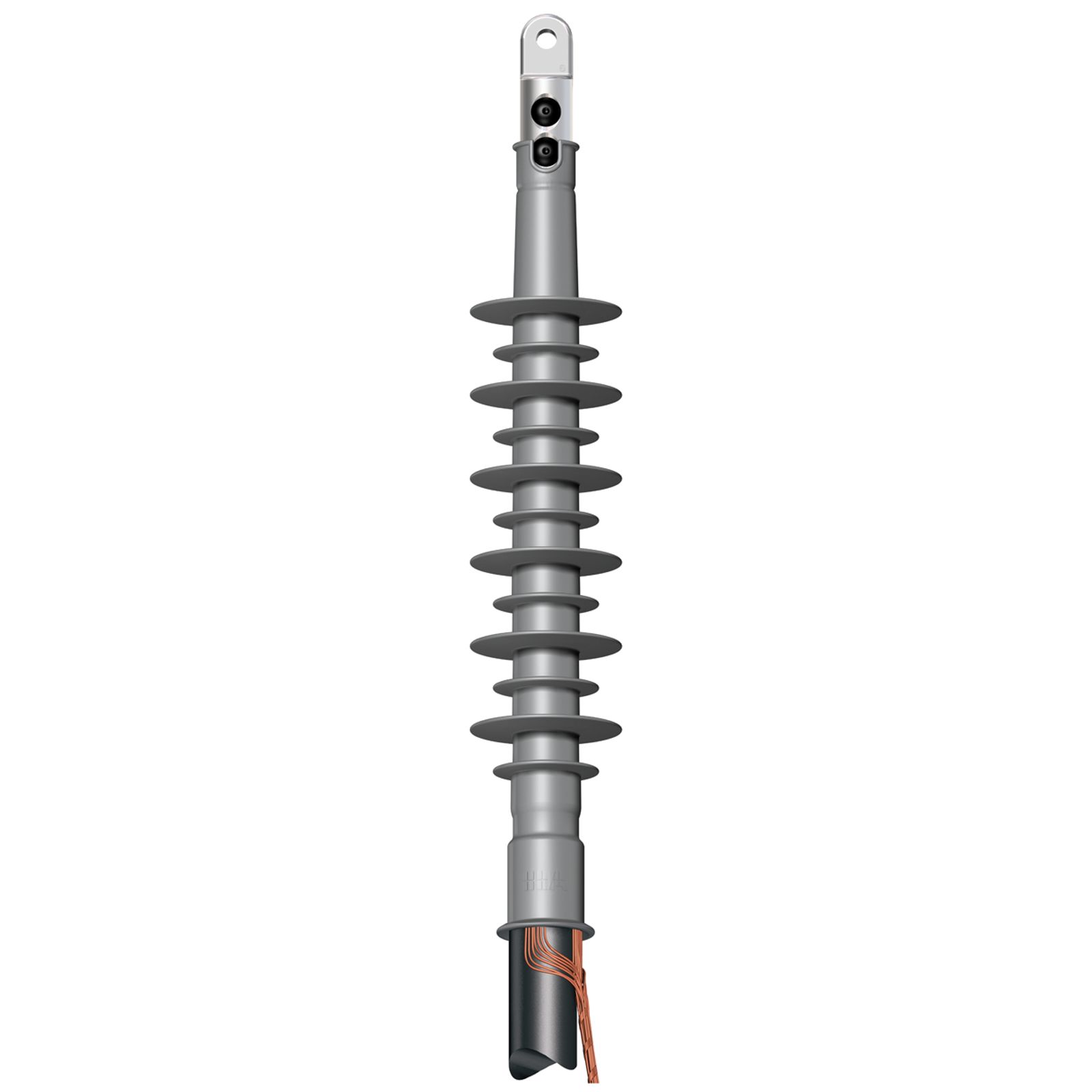

33 kV indoor/outdoor terminations: 3x single phase kits without shear-bolt lugs, includes silicone tape
|
Hiko Code | Application range | Insulation Diameter (mm) | ||
33kV |
Min |
Max | |||
Cross section (mm2) | |||||
Min | Max | ||||
NKTSOT3613 | 50 | 300 | 26.0 | 39.0 | |
NKTSOT3623 | 400 | 800 | 38.0 | 54.0 | |
3x Single phase kits with shear-bolt lugs
11/22 kV indoor terminations: 3x single phase kits complete with shear-bolt lugs, includes silicone tape
|
Hiko Code | Application range |
Insulation Diameter (mm) |
Lug hole diameter (mm) | Shear-bolt # for round compacted conductor | ||||
11kV | 22kV | ||||||||
Cross section (mm2) | Cross section (mm2) |
Min |
Max | ||||||
Min | Max | Min | Max | ||||||
NKTSOT241A335 | 10 | 35 | 10 | 16 | 11.0 | 15.0 | 13
| KP1225 | |
NKTSOT2413150 | 50 | 150 | 35 |
120 |
15.0 |
28.0 | KP1180 | ||
NKTSOT2413185 | 185 | 50 | KP1190 | ||||||
NKTSOT2423300 | 240 | 300 | 150 | 300 |
25.0 |
39.0 | KP1155 | ||
NKTSOT2423400 | 400 | 185 |
400 | 16.5 | KP1233 | ||||
NKTSOT2423500 | 300 | 500 | 300 | KP1195 | |||||
NKTSOT242B3630 | 630 | 630 | 500 | 630 | 38.0 | 54.0 | KP1195 | ||
11/22 kV outdoor terminations: 3x single phase kits complete with shear-bolt lugs, includes silicone tape
|
Hiko Code | Application range | Insulation Diameter (mm) | Lug hole diameter (mm) | Shear-bolt # for round compacted conductor | ||||
11kV | 22kV | ||||||||
Cross section (mm2) | Cross section (mm2) |
Min |
Max | ||||||
Min | Max | Min | Max | ||||||
NKTSOT243A335 | 16 | 35 | 25 | 11.0 | 15.0 | 13 | KP1225 | ||
NKTSOT243395 | 50 | 195 | 35 | 70 | 15.0 | 24.0 | |||
NKTSOT2443300 | 150 | 300 | 95 | 240 | 22.0 | 33.0 | KP1155 | ||
NKTSOT2453300 | – | 300 | 31.0 | 40.0 | |||||
NKTSOT2453500 | 400 | 500 | 300 | 500 | 16.5 | KP1195 | |||
NKTSOT2463630 | 630 | 630 | 38.0 | 54.0 | KP1195 | ||||
33 kV indoor/outdoor terminations: 3x single phase kits without shear-bolt lugs, includes silicone tape
Hiko Code | Application range | Insulation Diameter (mm) | Lug hole diameter (mm) |
Shear-bolt # for round compacted conductor | |||
33kV | |||||||
Cross section (mm2) | |||||||
Min | Max | Min | Max | ||||
NKTSOT3613185 | 50 | 185 | 26.0 | 39.0 | 13 | KP1190 | |
NKTSOT3613300 | 95 | 300 | KP1155 | ||||
NKTSOT3623630 | 400 | 630 | 38.0 | 54.0 | 16.5 | KP1195 | |
NKTSOT3623800 | 800 | 19 | KP1198 | ||||
3 core kits without lugs
(Including heat-shrink trifurcating kits, standard tail lengths, longer tails available on request)

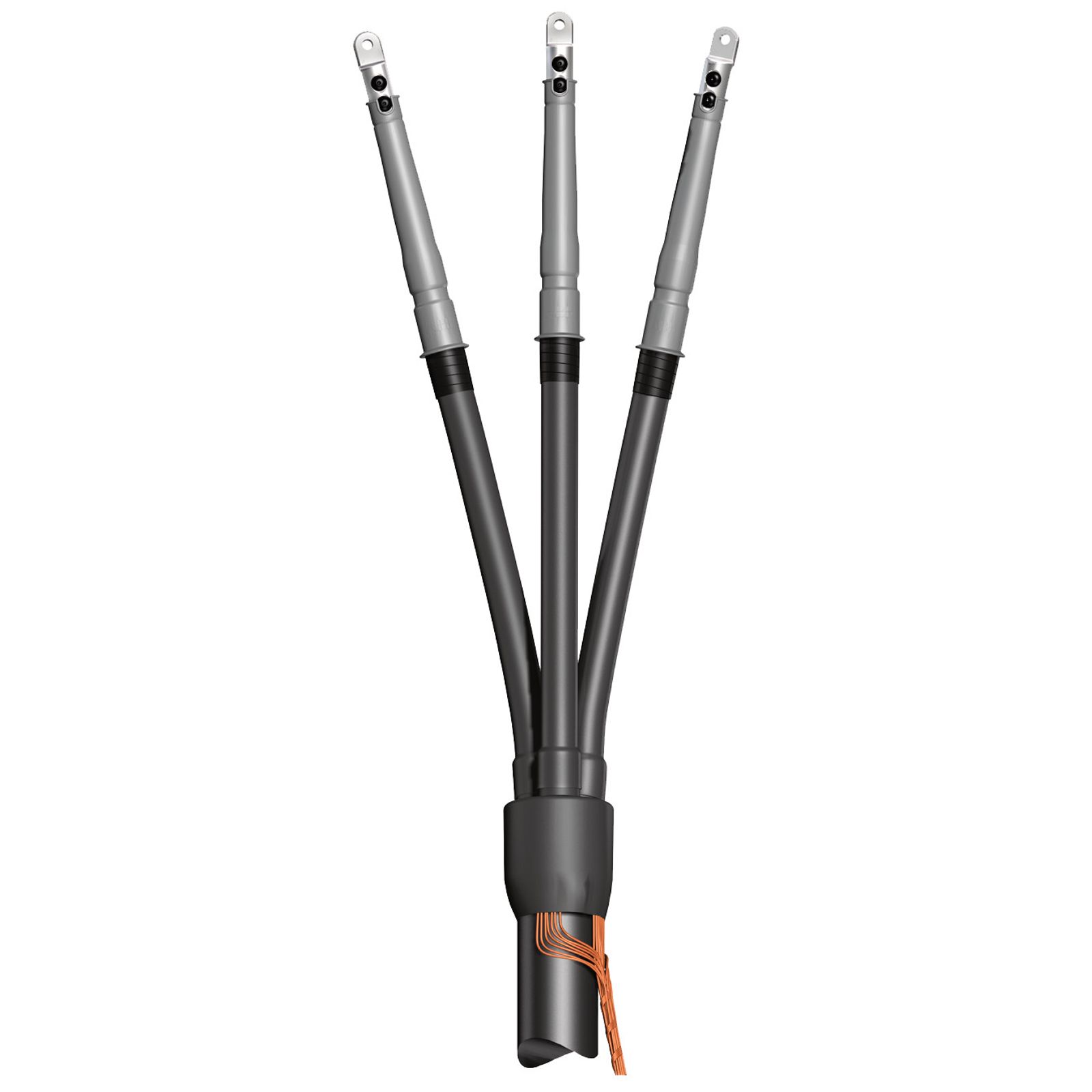

11/22 kV three core indoor terminations, without shear-bolt lugs, includes silicone tape
Hiko Code | Application range |
Insulation Diameter (mm) | Tail length (mm) | |||||
11kV | 22kV | |||||||
Cross section (mm2) | Cross section (mm2) |
Min |
Max | |||||
Min | Max | Min | Max | |||||
NKTSOT241A3C | 10 | 35 | 10 | 16 | 11.0 | 15.0 | 700 | |
NKTSOT2413C | 50 | 185 | 35 | 120 | 15.0 | 28.0 | ||
NKTSOT2423C | 240 | 500 | 150 | 400 | 25.0 | 39.0 | ||

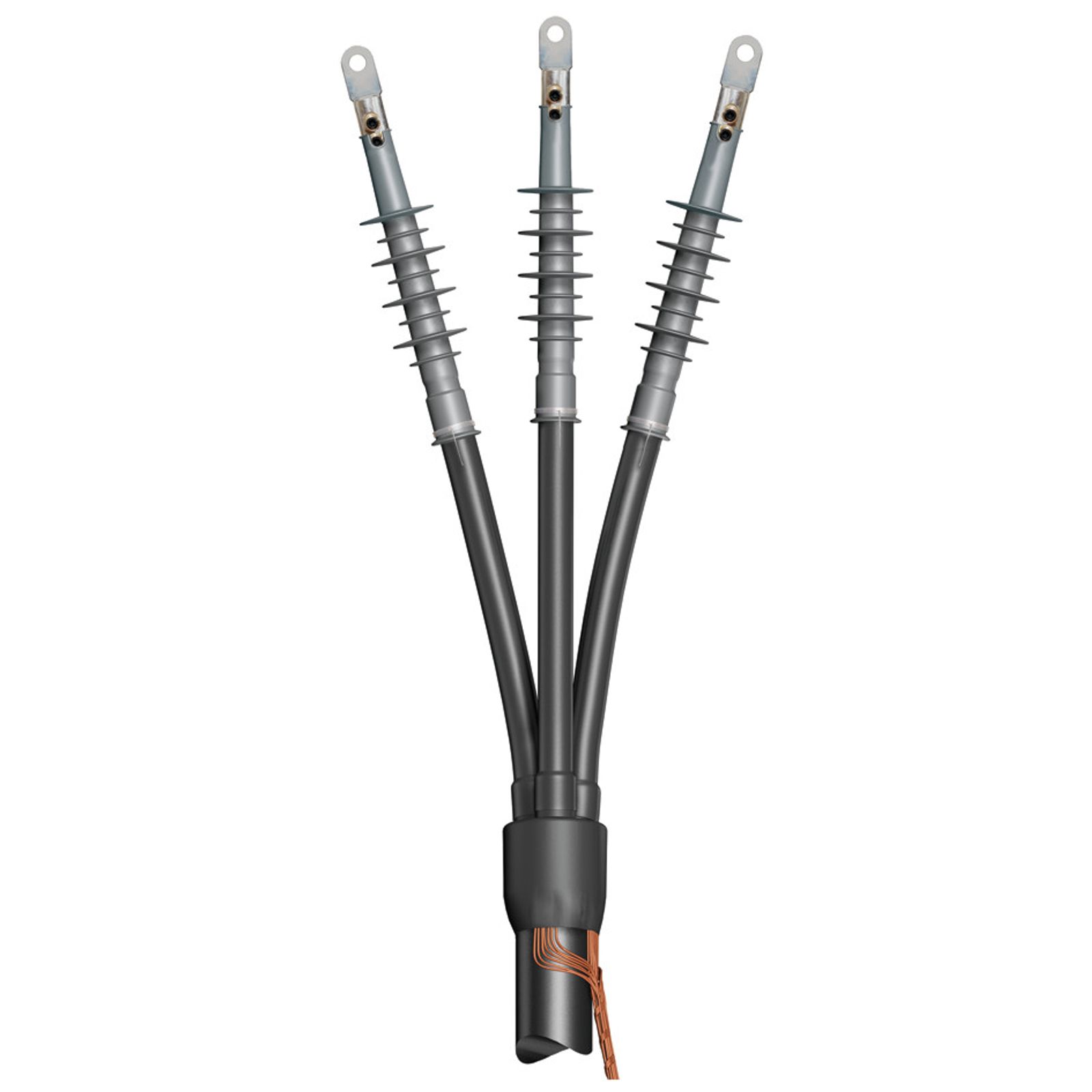

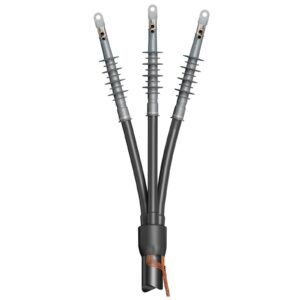

11/22 kV three core outdoor terminations, without shear-bolt lugs, includes silicone tape
|
Hiko Code | Application range | Insulation Diameter (mm) | Tail length (mm) | ||||
11kV | 22kV | |||||||
Cross section (mm2) | Cross section (mm2) |
Min |
Max | |||||
Min | Max | Min | Max | |||||
NKTSOT243A3C | 16 | 35 | 25 | 11.0 | 15.0 | 750 | ||
NKTSOT2433C | 50 | 195 | 35 | 70 | 15.0 | 24.0 | ||
NKTSOT2443C | 150 | 300 | 95 | 240 | 22.0 | 33.0 | ||
NKTSOT2453C | 400 | 500 | 300 | 500 | 31.0 | 40.0 | 800 | |
11/22 kV three core indoor/outdoor terminations, without shear-bolt lugs, includes silicone tape
Hiko Code | Application range | Insulation Diameter (mm) |
Lug hole diameter (mm) | |||
33kV | ||||||
Cross section (mm2) | ||||||
Min | Max | Min | Max | |||
NKTSOT3613C | 50 | 300 | 26.0 | 39.0 | 800 | |
NKTSOT3623C | 400 | 600 | 38.0 | 54.0 | 1000 | |
3 core kits complete with shear-bolt lugs
(Including heat-shrink trifurcating kits, standard tail lengths, longer tails available on request)
11/22 kV three core indoor terminations, complete with shear-bolt lugs, includes silicone tape
Hiko Code | Application range | Insulation Diameter (mm) |
Tail length (mm) |
Lug hole diameter (mm) | Shear-bolt # for round compacted conductor | |||||
11kV | 22kV | |||||||||
Cross section (mm2) | Cross section (mm2) |
Min |
Max | |||||||
Min | Max | Min | Max | |||||||
NKTSOT241A335C | 10 | 35 | 10 | 16 | 11.0 | 15.0 | 700 | 13 | KP1225 | |
NKTSOT241395C | 50 | 95 | 35 | 95 | 15.0 | 28.0 | ||||
NKTSOT2413150C | 150 | 150 | KP1180 | |||||||
NKTSOT2413185C | 50 | 185 | 120 | KP1190 | ||||||
NKTSOT2423300C | 240 | 300 | 150 | 300 | 25.0 | 39.0 | KP1155 | |||
NKTSOT2423500C | 300 | 500 | 300 | 400 | 16.5 | KP1195 | ||||
11/22 kV three core outdoor terminations, complete with shear-bolt lugs, includes silicone tape
|
Hiko Code | Application range | Insulation Diameter (mm) | Tail length (mm) | Lug hole diameter (mm) | Shear-bolt # for round compacted conductor | ||||
11kV | 22kV | |||||||||
Cross section (mm2) | Cross section (mm2) |
Min |
Max | |||||||
Min | Max | Min | Max | |||||||
NKTSOT243A335C | 16 | 35 | 25 | 11.0 | 15.0 | 700 | 13 | KP1225 | ||
NKTSOT2433120C | 50 | 120 | 35 | 95 | 15.0 | 24.0 | KP1180 | |||
NKTSOT2443300C | 150 | 300 | 95 | 150 | 22.0 | 33.0 | KP1155 | |||
NKTSOT2453500C | 400 | 500 | 300 | 120 | 31.0 | 40.0 | 800 | 16.5 | KP1195 | |
33 kV indoor/outdoor terminations, complete with shear-bolt lugs, includes silicone tape
|
Hiko Code | Application range 33kV | Insulation Diameter (mm) |
Lug hole diameter (mm) | Lug hole diameter (mm) | Shear-bolt # for round compacted conductor | ||
Cross section (mm2) |
Min |
Max | ||||||
Min | Max | |||||||
NKTSOT3613185C | 50 | 185 | 26.0 | 39.0 | 800 | 13 | KP1190 | |
NKTSOT3613300C | 95 | 300 | KP1155 | |||||
NKTSOT3623630C | 400 | 630 | 38.0 | 54.0 | 1000 | 16.5 | KP1195 | |
Hiko Code | Application range (mm2) |
Palm bore diameter (mm) |
Number of bolts | ||||||
Round stranded, RM | Sector stranded, SM | Round compacted, RMV | |||||||
Min | Max | Min | Max | Min | Max | ||||
KP1225 | 10 | 95 | 35 | 70 | 10 | 95 | 13 | 1 | |
KP1180 | 16 | 150 | 35 | 120 | 16 | 150 | 2 | ||
KP1181 | 16 | 150 | 35 | 95 | 16 | 150 | 16.5 | ||
KP1190 | 50 | 185 | 50 | 150 | 50 | 240 | 13 | ||
KP1191 | 50 | 185 | 50 | 150 | 50 | 240 | 16.5 | ||
KP1155 | 95 | 300 | 95 | 240 | 95 | 300 | 13 | ||
KP1156 | 95 | 300 | 95 | 240 | 95 | 300 | 16.5 | ||
KP1231 | 185 | 400 | 185 | 240 | 185 | 400 | 13 | 3 | |
KP1233 | 185 | 400 | 185 | 240 | 185 | 400 | 16.5 | ||
KP1194 | 300 | 630 | 300 | 400 | 300 | 630 | 13 | ||
KP1195 | 300 | 630 | 300 | 400 | 300 | 630 | 16.5 | ||
Other literature available on request
Reports, drawings, technical data sheets, installation instructions, O&M guidelines
