EFEN NH Fuse-Switches 80 V and 550 V DC
1-pole switching for baseplate and busbar mounting

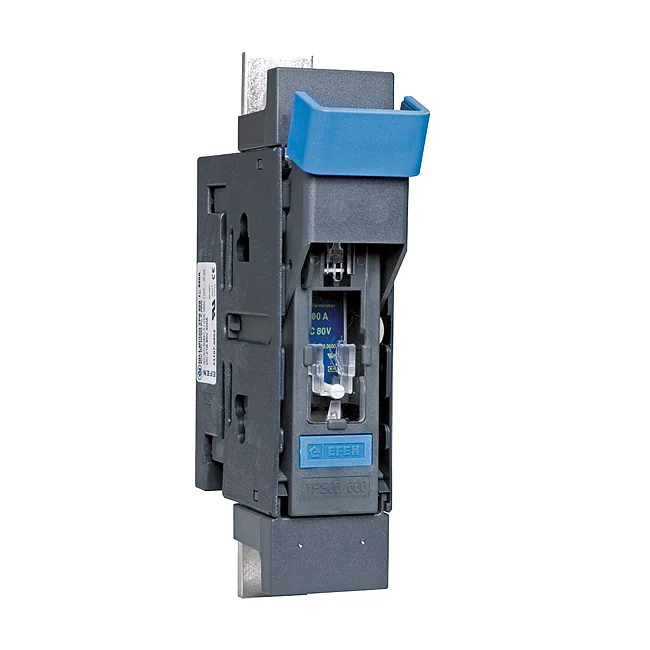

TPS Fuse-Switch for Baseplate Mounting with Fuse-Monitoring | |||||
33107-0602 | EFEN Part No. | Designation | Size | Amps | PU |
33107-0252 | Flat terminal M8 | 00 | 250 | 2 | |
33107-0602 | Flat terminal M12 | 00 | 600 | 2 | |
33460-0010 | Flat terminal M16 | 2 | 1200 | 1 | |
33560-0010 | Flat terminal 2 x M12 | 2 | 1600 | 1 | |
TPS Fuse-Switch for Busbar Mounting with Fuse-Monitoring | |||||
33111-0252 | EFEN Part No. | Designation | Size | Amps | PU |
33111-0252 | Flat terminal M8 | 00 | 250 | 2 | |
33111-0602 | Flat terminal M12 | 00 | 600 | 2 | |
33470-0010 | Flat terminal M16 | 2 | 1200 | 1 | |
33570-0010 | Flat terminal 2 x M12 | 2 | 1600 | 1 | |
Cover with Integrated Fuse-Monitoring for NH Fuse-Switch 550 V DC | ||||
EFEN Part No. | Designation | Size | PU | |
83359-0100 | Cover with fuse-monitoring | 1 | 1 | |
83360-0100 | Cover with fuse-monitoring | 2 | 1 | |
83361-0100 | Cover with fuse-monitoring | 3 | 1 | |
NH Fuse-Switches DC applications up to 80 V TPS series
TPS 00/250
TPS 00/600
TPS 2/1200
TPS 2/1600
Other literature available on request
Reports, drawings, technical data sheets, installation instructions, O&M guidelines
